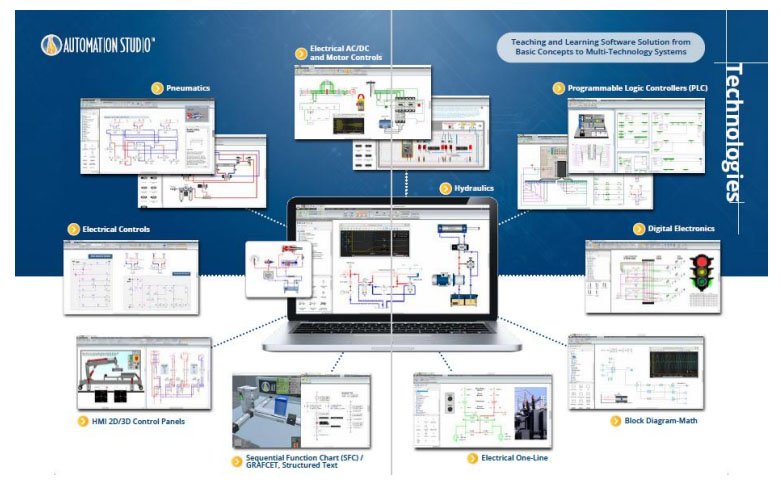

Automation Studio™ Fluid Power Package: The Ultimate Multi-Technology Learning Solution
Automation Studio™ is a comprehensive teaching and learning software solution designed to guide users from basic concepts to complex multi-technology systems. This fluid power package is an essential tool for educational institutions and industrial training centers, providing a realistic environment to design, simulate, and troubleshoot integrated systems.
Comprehensive Multi-Technology Modules
Our package integrates various engineering disciplines into a single, seamless environment:
- Fluid Power: Extensive libraries for Hydraulics, Proportional Hydraulics, Pneumatics, and Proportional Pneumatics.
- Electrical Systems: Includes Electrical Control (JIC & IEC standards), Electrical AC/DC, and Motor Control modules.
- Control Logic: Program and simulate using PLC (Siemens™ style), SFC/GRAFCET (IEC 61131), Digital Electronics, and Block Diagram-Math.
- Mechanical & Diagnostic Tools: Specialized modules for Mechanical Links, Component Sizing, and advanced Diagnostics & Troubleshooting.
Core Features for Immersive Learning
- Realistic Simulation: Bring circuits to life with high-fidelity simulation that allows students to visualize system behavior in real-time.
- Hardware Connectivity: Connect to physical devices such as PLCs and external controllers through an integrated OPC Client, bridging the gap between virtual design and physical hardware.
- Interactive Instruments: Utilize realistic measuring instruments to take readings within the software, just as you would in a physical lab.
- Mechanism Manager: Create and simulate 2D/3D mechanical links to observe the interaction between fluid power and mechanical movement.
- BOM & Catalogues: Access extensive manufacturer catalogues to select real-world components and automatically generate Bills of Materials (BOM).
Educational Benefits: “Learn by Doing”
- Interactive Lab Exercises: The software includes pre-made exercises to guide students through common industrial scenarios.
- 3D Visualization: Enhance understanding with 3D control panels and Unity 3D-integrated exercises for a modern, gaming-inspired learning feel.
- Teachware Included: Comprehensive teaching materials for Hydraulics, Pneumatics, and Electrical technologies are bundled to assist instructors in curriculum delivery.
System Requirements & Maintenance
To ensure optimal performance, the following specifications are recommended:
- Operating System: Windows 7 SP1, 8.1, or 10 (Educational Edition).
- Processor: Intel® Core™ i5 or equivalent (multi-core supported).
- Memory: 4 GB RAM.
- Graphics: 1 GB Video memory with OpenGL 2.0 or Direct3D 11 support (required for 3D modules).
- Storage: 5 GB free disk space.
Annual Maintenance Includes:
- Continuous software updates and new version releases.
- Unlimited access to technical support.
- Online training sessions (2 hours) to get your team up to speed.
- Access to the latest manufacturer catalogues and teachware updates.
- CPU
- MEMORY
- NOTE
Powered by the 8085 microprocessor operating at 3.072 MHz, ensuring stable performance for training and experimentation.
Supports up to 64KB memory (32KB EPROM and 32KB RAM) with a battery backup option for RAM, making it reliable for extended use.
The trainer kit comes preconfigured with 16KB EPROM and 8KB RAM for immediate use and easy upgrades.
- Key Features
- Applications
Processor: TMS320C6748 DSP from Texas Instruments.
Ease of Use: User-friendly design suitable for beginners as well as professionals.
Applications: From simple signal processing and analytics to real-time audio and video processing.
Debugging Support: Integrated with XDS100 V3 JTAG emulator for efficient development and testing.
Engineering and Polytechnic colleges.
Research labs and training centers.
Industrial training programs for skill development.
